CIS-4 Is a Monkish Clock Inside a Ceiling Lamp https://hackaday.com/2025/07/04/cis-4-is-a-monkish-clock-inside-a-ceiling-lamp/ #cistercianclock #clockhacks #attiny85 #neopixel

CIS-4 Is a Monkish Clock Inside a Ceiling Lamp https://hackaday.com/2025/07/04/cis-4-is-a-monkish-clock-inside-a-ceiling-lamp/ #cistercianclock #clockhacks #attiny85 #neopixel
CIS-4 Is a Monkish Clock Inside a Ceiling Lamp - It’s always clock time at Hackaday, and this time we have an interesting hack of a... - https://hackaday.com/2025/07/04/cis-4-is-a-monkish-clock-inside-a-ceiling-lamp/ #cistercianclock #clockhacks #attiny85 #neopixel
Thanks to your amazing support, our ANAVI Miracle Emitter campaign at @crowdsupply wrapped up successfully! Backers from 7 countries helped bring this open-source NeoPixel controller to life.
Production is nearly complete, and shipping starts soon! Stay tuned for more updates!
#OpenSource #ESP32C3 #NeoPixel

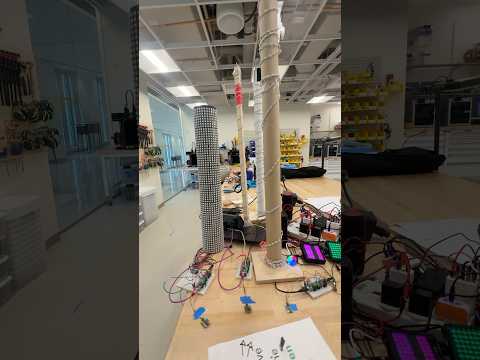

Now with eight 32x8 flexible #NeoPixel #LED mateicies & just one signal clearing 330 ohm resistor controlled by one @raspberrypi Pico 2W w/CircuitPytbon, an @adafruit Vl53l1x Time of Flight sensor, & PVM5102 DAC w/speaker out. Will tweak sound & animation & add at least two more pillars w/new tone ranges. Ideas for diffusion? I’ll wait til I get the final fab done but will absolutely post a build tutorial. https://youtube.com/shorts/iTfHW93_Xi8?si=QpLEsxCYV2CUkJpK

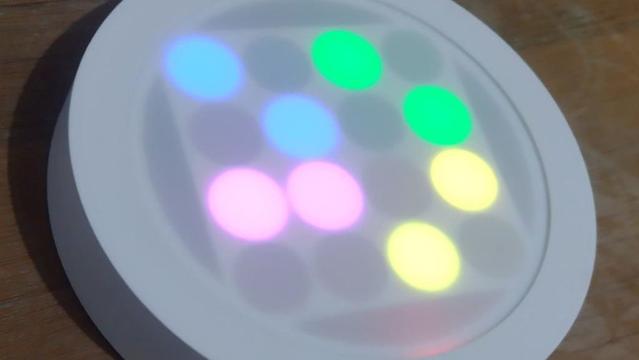

The project is finished!
It’s now called Space Clock because it should also be possible to display other variants on it, such as a binary clock, even though the Tix version is definitely the most impressive.
You can now find it at Haxko in Andernach, Germany, during opening hours.
https://haxko.space
@haxko
And there’s more to discover
If your area has nasty smoke right now and you are sick of having to keep checking a website to get the current AQI I made a small internet enabled LED project that glows with the current AQI color. Only needs a NodeMCU/Feather, a NeoPixel Jewel or Ring and some Dupont type wires to connect. See https://www.instructables.com/PurpleAir-Air-Quality-Status-LED-Display/ for really simple instructions and code. Code also here; https://github.com/jeff-luszcz/PurpleTheopolis #arduino #nodemcu #neopixel #aqi #smoke
Automate your home with Home Assistant + ANAVI Miracle Emitter!
Control addressable LEDs via MQTT or WLED - fully open source.
Final hours of our crowdfunding campaign at @crowdsupply back now for free US shipping & current prices!
https://www.crowdsupply.com/anavi-technology/anavi-miracle-emitter/updates/home-automation-with-the-anavi-miracle-emitter
#homeassistant #neopixel #esp32c3 #esp32 #wled #opensource #crowdfunding
Another #NeoPixel project, another abstract clock. Well, just a timer for now until I get an RTC sorted.
I have a #TM1637 6-digit 7-segment LED display and a pair of #NeoPixel rings representing elapsed time.
The outer 24 LED ring uses red to show hours, and blue to show twentieths of a second. The inner 12 LED ring shows minutes in green and seconds in blue, each one a step of 5.
Running on an Arduino Pro-mini... because I could not get the NeoPixels to behave with any library on an #Uno R4!
Saw this project on #Instructables from #Moononournation https://www.instructables.com/IoT-Emoji-Sign-V2/
It's a fun project, but I was more interested in the 8x8 #Neopixel #Matrix
So I bought a couple of the #Waveshare #ESP32S3 8x8 boards, and printed out a couple of cases.
The boards work really well - I had an idea in mind when I ordered them, but now I forgot what I wanted to do with them.... I guess I'll make an #emjoi #display after all..... LOL
Forbidden Planet “Krell” Display – MIDI CC Controller – Part 2
This revisits my Forbidden Planet “Krell” Display – MIDI CC Controller using my Forbidden Planet “Krell” Display PCB with a Waveshare RP2040 to create more of a “all in one” device.
Warning! I strongly recommend using old or second hand equipment for your experiments. I am not responsible for any damage to expensive instruments!
If you are new to Arduino, see the Getting Started pages.
Parts list
PCB
This requires a built of the Forbidden Planet “Krell” Display PCB with the following:
I’ve used potentiometers that are their own knob, as they only poke through the casing by around 5mm or so.
If it you are able to get longer shaft pots, then that would probably be worthwhile.
Updated 3D Printed Case
This requires the following from the Krell Display 3D Printed Case:
This requires the following options in the OpenSCAD code:
show_frame = 1;
show_quadframe = 0;
show_insert = 1;
show_support = 0;
show_quadsupport = 0;
show_eurorack = 0;
show_eurorack_support = 1;
alg_pot1 = 1;
alg_pot2 = 1;
alg_cv = 0;
The frame does not really take into account the PCB at present, but I’ve reached the “good enough I want to do something else” stage, so I’ve just added a couple of small cut-outs (using a hacksaw) for the two MIDI sockets, and am content that the components stick out a bit from the back.
This cutout has to be 10.5mm from the end, 6mm wide, and 5mm deep.
At some point I might go back and design a deeper frame that has the cut-outs included and some kind of snap-on back to make it a self-contained box.
But for now, this is left as an exercise for, well, anyone else
Construction
I’ve used four brass 6mm spacers to screw into the mounting holes in the frame. Then the PCB can be inserted, taking care to squeeze in the 3D printed support around the LEDs and pots, and fixed with 20mm spacers which will also act as “legs”.
The Code
I’ve used a Waveshare Zero RP2040 and Circuitpython for this build. This is a combination of some of the test code used for the Forbidden Planet “Krell” Display PCB but with added MIDI.
The code supports both Serial and USB MIDI.
I wanted an equivalent of the Arduino map() and constrain() functions and didn’t immediate spot them in Circuitpython so wrote my own:
def algmap(val, minin, maxin, minout, maxout):
if (val < minin):
val = minin
if (val > maxin):
val = maxin
return minout + (((val - minin) * (maxout - minout)) / (maxin - minin))
This allows me to map the analog read values (0 to 65535) down to MIDI CC values (0 to 127) whilst also allowing for some inaccuracies (I’ve treated anything below 256 as zero for example):
alg1cc = int(algmap(alg1_in.value,256,65530,0,127))
I’ve used the Adafruit MIDI library, which I’m still not really a fan of, but I wanted to include MIDI THRU functionality to allow the controller to sit inline with an existing MIDI stream. But it doesn’t seem to work very well.
I was already only updating the LEDs/MIDI CC if the pot values had changed, to cut down on the number of Neopixel writes required.
I experimented with changing the scheduling of the analog reads and MIDI but that didn’t seem to help very much. In the end I made sure that all MIDI messages queued up in the system would be read at the same time before going back to checking the pots.
msg = midiuart.receive()
while (msg is not None):
if (not isinstance(msg, MIDIUnknownEvent)):
midiuart.send(msg)
msg = midiuart.receive()
It will do for now. Moving forward, I might try the Winterbloom SmolMIDI library. If that still doesn’t give me some useful performance then I might have to switch over to Arduino C.
Closing Thoughts
The MIDI throughput is disappointing, but then I’ve never really gotten on with the Adafruit MIDI library. I use it as USB MIDI on Circuitpython is so easy, so will need to do something about that.
I’m still deciding on the PCB-sized supports too. The original seemed to have nicer diffusion of the LEDs, but that could have been the difference between 5mm SMT neopixels and these THT APA106s which seem more directional in the first place.
And I really ought to finish the 3D printed case properly too.
So this is “that will do” for now, but I ought to come back and finish it off properly at some point.
Kevin
I have hit a tough spot in an existing project, so while I think about it, how about a distraction project!
Behold a NeoPixel clock
An abstract (to me) clock using 2 NeoPixel rings to indicate the time using the position and colour of the pixels.
I added a TM1637 based 6-digit 7-segment display too, because it was on the table beside me, and why not?
More ideas to implement, but pleased with it so far.
All the code on GitHub. Enjoy!
I think I’m happy with this enclosure design! All goes together with friction. No screws needed! #3dprinting #3dprinted #wled #rgbled #rgb #neopixel #maker #makers #electronics #1segrgb
Having some #NeoPixel fun!
It is incredibly simple to write code for these things, even with just a small #Arduino.
Here I have 2x 12 RGB pixel rings, one daisy chained from the other. Just tell the library you have 24 pixels and you are off to the races.
It draws rings and the infinity symbol in a variety of colours controlled by some nested RGB loops.
Today is experimenting with #esp32 #esphome and #homeassistantday - got one working with servo controller and #neopixel ring - working on the other with ultrasonic distance sensors …
STM32 Tutorial #37 - Cool RGB LEDs (WS2812 aka. NeoPixel)
Driving WS2812 NeoPixel RGB LEDs with a STM32. In this video we'll go through my library which uses Timer PWM + DMA to drive a string WS2812 NeoPixel RGB LEDs.
#stm32 #tutorial #ws2812 #ws2812b #neopixel #timer #pwm #dma #stm32world
https://www.youtube.com/watch?v=mdZerUTFJUw
Ended up doing a bit of Arduino coding as my soldering gear was not returned as expected... Some excuse about the cold
In truth, it has not got above freezing all day, and even the cat did not venture out.
Anyway, behold some NeoPixel goodness. Literally 10 mins coding on the Adafruit "simple" Library example.
And now with added #Neopixel goodness :)
